Industrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LED

Name: Industrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB GY LED
Brand: DGKYD
Price: 1 USD

Quality Industrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LED for sale

Place of Origin : DongGuan of China

Brand Name : DGKYD

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

MOQ : 1 piece

Packaging Details : Tray in Carton

Delivery Time : 10 days

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Model Number : KRJ-007DUSBNL

Price : Please contact us to get the latest price.

Housing Material : PBT BLACK

Contact Mating Area Plating : GOLD 6u'' / 15u"/ 30u"/ 50u" for optional

Metal Shield : TIN PLATED PHOSPHOR BROZNE

LED Color : Green&Yellow

Latch : Up

PCB Mount Angle : SIDE ENTRY

Mount Stlye : Though Hole

Jack Type : RJ45 + USB

Contact Now

DESCRIPTION
China supplier KRJ-007DUSBNL Industrial USB RJ45 Connector single port with LED
ELECTRICAL
Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement
High performance for maximum EMI suppression
350uH minmum OCL with 8mA bias current
1.Current Rating	1.5 amps
2.Voltage Rating	125vac
3.Insulation Resistance	500 MΩmin
4.Contact Resistance	30 MΩmax
5.Withstanding Voltage	AC 1500V RMS 50Hz or 60Hz 1 min
Instertion Loss:	-1.2dB Maximum @100KHz-100MHz
Return Loss:	-18dB Minimum @1MHz-30MHz
	-14dB Minimum @30MHz-60MHz
	-12dB Minimum @60MHz-80MHz
Common Mode Rejection:	-30dB Minimum @1MHz-100MHz
Cross Talk:	-30dB Minimum @1MHz-100MHz
MECHANICAL
1.Insertion Force	2 CONTACTS....350g 4 CONTACTS….500g 6 CONTACTS….750g
	8 CONTACTS….900g 10 CONTACTS....1050g
2.Retention Strength	7.7KG.F min between jack and plug
3.Durability	800 mating cycles min
MATERIAL
1.Housing	ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2.Contact Wire	Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness
	phosphor bronze alloy selective gold plating over nickel
3.Shield	0.20~0.25mm thickness brass with tin plated
4.Gold Plating	3u inch,6u inch,15u inch,30u inch,50u inch
5.LED Specification	LED Color:	LED Wavelength:	Forward(V MAX):	Typical (V TYP):	Luminous Intensity:
	Green	560-580 nm	2.5V	2.1-2.2V	9-25 MCD
	Yellow	580-610 nm	2.5V	2.1-2.2V	9-30 MCD
	LED intensity/wavelength measured with Photo Research PR-650 Colormeter
	With a forward current of 20 mA,Absolute Maximum Ratings (Ta=25°C)

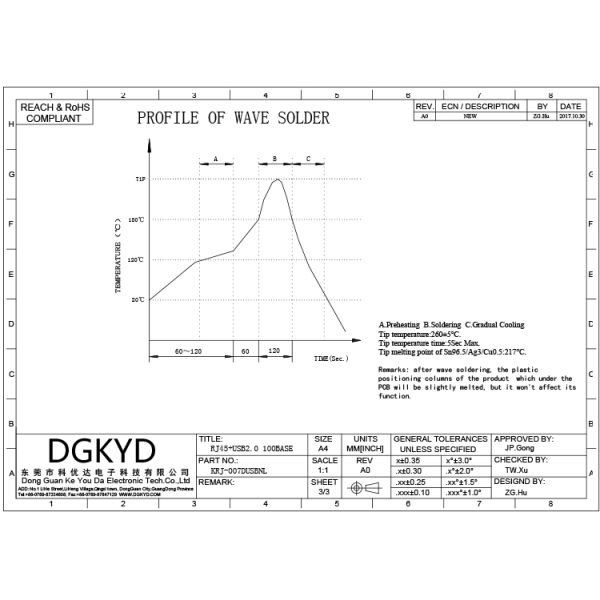

6.RoHS peak wave solder	RoHS peak wave solder temperature rating 240°C±5°C
ENVIRONMENTAL
Operating Temperature:	-40°C to 85°C
Working Temperature	-40°C to 85°C
APPLICATION
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK
STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.

Material specifications:

Plastic core:Glass fiber filler PBT Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated

LED Specification:

Emitting color	Dominant wavelength(nm) (min/max)	Forward voltage (v)	Forward current (A)	Type
Green	570-575	1.8-2.4	20mA	Squareness
Yellow	585-590	1.8-2.4	20mA	Squareness

► Product Drawing

Industrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LED
Application :
